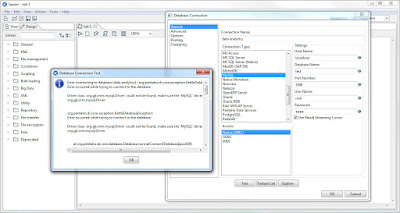

Spoon pentaho database connection - error connecting to database

Error connecting to database [data analytics] : org.pentaho.di.core.exception.KettleDatabaseException:
Error occurred while trying to connect to the database

Driver class 'org.gjt.mm.mysql.Driver' could not be found, make sure the 'MySQL' driver (jar file) is installed.
org.gjt.mm.mysql.Driver


org.pentaho.di.core.exception.KettleDatabaseException:
Error occurred while trying to connect to the database

Driver class 'org.gjt.mm.mysql.Driver' could not be found, make sure the 'MySQL' driver (jar file) is installed.
org.gjt.mm.mysql.Driver



at org.pentaho.di.core.database.Database.normalConnect(Database.java:459)
at org.pentaho.di.core.database.Database.connect(Database.java:357)
at org.pentaho.di.core.database.Database.connect(Database.java:328)
at org.pentaho.di.core.database.Database.connect(Database.java:318)
at org.pentaho.di.core.database.DatabaseFactory.getConnectionTestReport(DatabaseFactory.java:80)
at org.pentaho.di.core.database.DatabaseMeta.testConnection(DatabaseMeta.java:2734)
at org.pentaho.ui.database.event.DataHandler.testDatabaseConnection(DataHandler.java:588)
at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
at sun.reflect.NativeMethodAccessorImpl.invoke(Unknown Source)
at sun.reflect.DelegatingMethodAccessorImpl.invoke(Unknown Source)
at java.lang.reflect.Method.invoke(Unknown Source)
at org.pentaho.ui.xul.impl.AbstractXulDomContainer.invoke(AbstractXulDomContainer.java:313)
at org.pentaho.ui.xul.impl.AbstractXulComponent.invoke(AbstractXulComponent.java:157)
at org.pentaho.ui.xul.impl.AbstractXulComponent.invoke(AbstractXulComponent.java:141)
at org.pentaho.ui.xul.swt.tags.SwtButton.access$500(SwtButton.java:43)
at org.pentaho.ui.xul.swt.tags.SwtButton$4.widgetSelected(SwtButton.java:136)
at org.eclipse.swt.widgets.TypedListener.handleEvent(Unknown Source)
at org.eclipse.swt.widgets.EventTable.sendEvent(Unknown Source)
at org.eclipse.swt.widgets.Widget.sendEvent(Unknown Source)
at org.eclipse.swt.widgets.Display.runDeferredEvents(Unknown Source)
at org.eclipse.swt.widgets.Display.readAndDispatch(Unknown Source)
at org.eclipse.jface.window.Window.runEventLoop(Window.java:820)
at org.eclipse.jface.window.Window.open(Window.java:796)
at org.pentaho.ui.xul.swt.tags.SwtDialog.show(SwtDialog.java:389)
at org.pentaho.ui.xul.swt.tags.SwtDialog.show(SwtDialog.java:318)
at org.pentaho.di.ui.core.database.dialog.XulDatabaseDialog.open(XulDatabaseDialog.java:116)
at org.pentaho.di.ui.core.database.dialog.DatabaseDialog.open(DatabaseDialog.java:60)
at org.pentaho.di.ui.spoon.delegates.SpoonDBDelegate.newConnection(SpoonDBDelegate.java:470)
at org.pentaho.di.ui.spoon.delegates.SpoonDBDelegate.newConnection(SpoonDBDelegate.java:457)
at org.pentaho.di.ui.spoon.Spoon.newConnection(Spoon.java:8750)
at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
at sun.reflect.NativeMethodAccessorImpl.invoke(Unknown Source)
at sun.reflect.DelegatingMethodAccessorImpl.invoke(Unknown Source)
at java.lang.reflect.Method.invoke(Unknown Source)
at org.pentaho.ui.xul.impl.AbstractXulDomContainer.invoke(AbstractXulDomContainer.java:313)
at org.pentaho.ui.xul.impl.AbstractXulComponent.invoke(AbstractXulComponent.java:157)
at org.pentaho.ui.xul.impl.AbstractXulComponent.invoke(AbstractXulComponent.java:141)
at org.pentaho.ui.xul.jface.tags.JfaceMenuitem.access$100(JfaceMenuitem.java:43)
at org.pentaho.ui.xul.jface.tags.JfaceMenuitem$1.run(JfaceMenuitem.java:106)
at org.eclipse.jface.action.Action.runWithEvent(Action.java:498)
at org.eclipse.jface.action.ActionContributionItem.handleWidgetSelection(ActionContributionItem.java:545)
at org.eclipse.jface.action.ActionContributionItem.access$2(ActionContributionItem.java:490)
at org.eclipse.jface.action.ActionContributionItem$5.handleEvent(ActionContributionItem.java:402)
at org.eclipse.swt.widgets.EventTable.sendEvent(Unknown Source)
at org.eclipse.swt.widgets.Widget.sendEvent(Unknown Source)
at org.eclipse.swt.widgets.Display.runDeferredEvents(Unknown Source)
at org.eclipse.swt.widgets.Display.readAndDispatch(Unknown Source)
at org.pentaho.di.ui.spoon.Spoon.readAndDispatch(Spoon.java:1339)
at org.pentaho.di.ui.spoon.Spoon.waitForDispose(Spoon.java:7939)
at org.pentaho.di.ui.spoon.Spoon.start(Spoon.java:9214)
at org.pentaho.di.ui.spoon.Spoon.main(Spoon.java:653)
at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
at sun.reflect.NativeMethodAccessorImpl.invoke(Unknown Source)
at sun.reflect.DelegatingMethodAccessorImpl.invoke(Unknown Source)
at java.lang.reflect.Method.invoke(Unknown Source)
at org.pentaho.commons.launcher.Launcher.main(Launcher.java:92)
Caused by: org.pentaho.di.core.exception.KettleDatabaseException:
Driver class 'org.gjt.mm.mysql.Driver' could not be found, make sure the 'MySQL' driver (jar file) is installed.
org.gjt.mm.mysql.Driver

at org.pentaho.di.core.database.Database.connectUsingClass(Database.java:502)
at org.pentaho.di.core.database.Database.normalConnect(Database.java:443)
... 55 more
Caused by: java.lang.ClassNotFoundException: org.gjt.mm.mysql.Driver
at java.net.URLClassLoader.findClass(Unknown Source)
at java.lang.ClassLoader.loadClass(Unknown Source)
at java.lang.ClassLoader.loadClass(Unknown Source)
at org.pentaho.di.core.database.Database.connectUsingClass(Database.java:477)
... 56 more

Hostname : localhost
Port : 3306
Database name : test



Solution to this problem

1. Download java mysql connector
2. Once downloaded unzip the file and copy the Java mysql connector for example I've downloaded mysql-connector-java-5.1.24-bin
3. Paste it to the pdi-ce-6.0.1.0-386 library folder for example C:\Users\mypc\Desktop\pdi-ce-6.0.1.0-386\data-integration\lib



Restart the spoon.bat apps and re-run then re-establish a new mysql connection it should be successful this time see below
