Richtek RT9172 3A Fixed Output Voltage LDO Regulator

General Description

The RT9172 series of low dropout linear regulators operate from a 2.25V to 6V input supply. A wide range of preset output voltage options is available. These low dropout linear regulators respond very fast to step changes in load, which are suitable for low voltage microprocessor applications. The RT9172 uses an internal P-MOSFET as the pass device, which does not cause extra GND current in heavy load and dropout condition. The shutdown mode of low operation current makes the IC suitable for powersaving systems. The other features include current limiting and over temperature protection.



Features


  • Low Dropout Voltage
  • Low Ground Pin Current
  • Load Regulation of 0.4% at 3A
  • 0.5mA Quiescent Current in Shutdown Mode
  • Guaranteed Output Current of 3A DC
  • Available in TO-263 and TO-220 Packages
  • Output Voltage Accuracy ±1.5%
  • Error Flag Indicates Output Status
  • Sense Option Improves Better Load Regulation
  • Extremely Low Output Capacitor Requirements
  • Over Temperature/Over- Current Protection
  • RoHS Compliant and 100% Lead (Pb)-Free


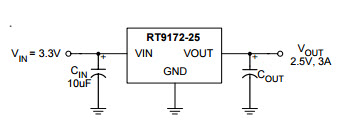

Applications


  • Microprocessor Power Supplies
  • GTL, GTL+, BTL, and SSTL Bus Terminators
  • Power Supplies for DSPs
  • SCSI Terminator
  • Post Regulators
  • High Efficiency Linear Regulators
  • Battery Chargers
  • Other Battery Powered Applications
