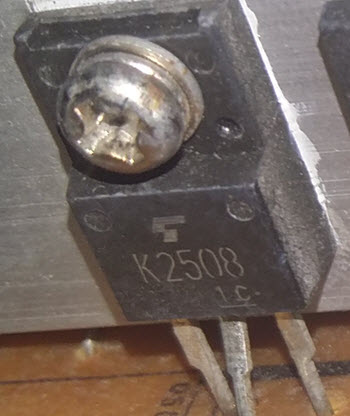

K2508 N-Channel Mosfet (Toshiba)

Switching Regulator and DC−DC Converter and Motor K2508 N-Channel Mosfet (Toshiba)

Applications

  • Low drain−source ON resistance : RDS (ON) = 0.18 Ω (typ.)
  • High forward transfer admittance : |Yfs| = 13 S (typ.)
  • Low leakage current : IDSS = 100 μA (max) (VDS = 250 V)
  • Enhancement mode : Vth = 1.5~3.5 V (VDS = 10 V, ID = 1 mA)
Datasheet




K2508 Datasheet | K2508 Pin out | K2508 Pin arrangement | K2508 Gate Drain Source
