MBRF 20U100CT High Power Schottky Barrier Rectifier

Features

• High Current Capability
• Low Switching Noise
• High Surge Capability
• Low Power Loss & High Efficiency
• Guard Ring Protection
• Pd-free lead plating & Halogen-free part


Mechanical Data

• Molded Plastic Low profile TO-220AB
• Plastic materials used carries underwriters - laboratory flammability classification 94V-0
• Lead Temperature for Soldering Purposes: 265℃ Max. for 10 Seconds
• Device Weight : Approximated 2.25 grams

Datasheet

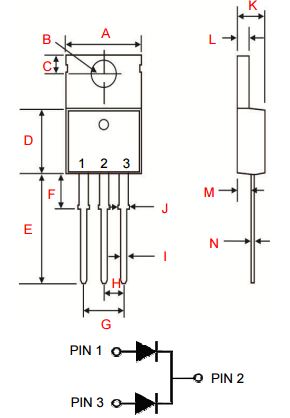

MBRF 20U100CT Datasheet | MBRF 20U100CT Pinout | MBRF 20U100CT pin arrangement | MBRF 20U100CT pin terminal | MBRF 20U100CT LG LCD TV
