Low Noise Amplifier Wideband LNA operating at 100 Mhz ~ 1.5 Ghz Gain 15 dB

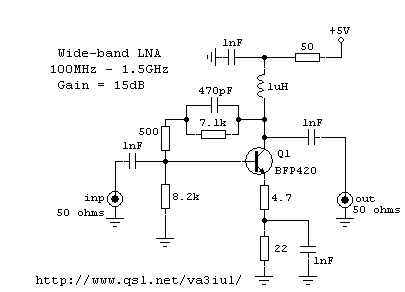

Low Noise amplifier (LNA) wideband operating at 100 Mhz ~ 1.5 Ghz with Gain 15 dB. Good for HSDPA and 3G Signal amplification. The following are the components.
Components:
Ceramic Capacitors: 4 x 1nF, 470pF
Resistors: 50 Ohm, 500 Ohm, 8.2 KOhm, 22 Oh, 4.7 Ohm, 7.1 Kohm
RF Transistor: BFP420
Power: 5 Volt
Input Output Impedance: 50 Ohms
Components:
Ceramic Capacitors: 4 x 1nF, 470pF
Resistors: 50 Ohm, 500 Ohm, 8.2 KOhm, 22 Oh, 4.7 Ohm, 7.1 Kohm
RF Transistor: BFP420
Power: 5 Volt
Input Output Impedance: 50 Ohms
