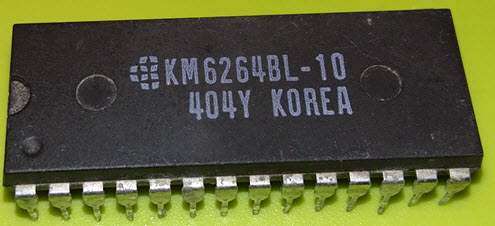

KM6264BL-10 8Kx8 bit Low Power CMOS Static RAM

FEATURE SUMMARY

Process Technology : CMOS
· Organization : 8K x 8
· Power Supply Voltage : Single 5V ± 10%
· Low Data Retention Voltage : 2V(Min)
· Three state output and TTL Compatible
· Package Type : JEDEC Standard
28-DIP, 28-SOP

GENERAL DESCRIPTION

The KM6264B family is fabricated by SAMSUNG's advanced CMOS process technology. The family can support various operating temperature ranges and has various package types for user flexibility of system design. The family also support low data retention voltage for battery back-up operations with low data retention current.

Datasheet
