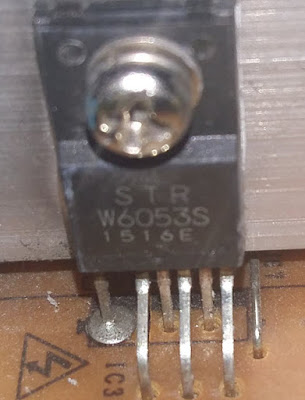

STR W6053S Sanken Off-Line PWM Controllers with Integrated Power MOSFET

General Descriptions

The STR-W6000S series are power ICs for switching power supplies, incorporating a MOSFET and a current mode PWM controller IC. The low standby power is accomplished by the automatic switching between the PWM operation in normal operation and the burst-oscillation under light load conditions. The product achieves high cost-performance power supply systems with few external components.


 Current Mode Type PWM Control
 Brown-In and Brown-Out function
 Auto Standby Function
No Load Power Consumption < 30 mW
 Operation Mode
Normal Operation ----------------------------- PWM Mode
Standby---------------------------- Burst Oscillation Mode
 Random Switching Function
 Slope Compensation Function
 Leading Edge Blanking Function
 Bias Assist Function
 Audible Noise Suppression function during Standby
 Protections
・Overcurrent Protection (OCP); Pulse-by-Pulse,
built-in compensation circuit to minimize OCP point
variation on AC input voltage
・Overload Protection (OLP); auto-restart
・Overvoltage Protection (OVP); auto-restart
・Thermal Shutdown Protection (TSD); auto-restart

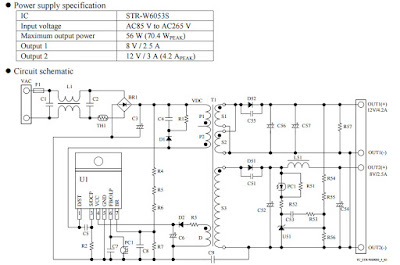

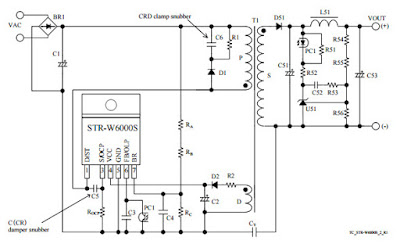

STR W6053S Pinout | STR W6053S Schematic
