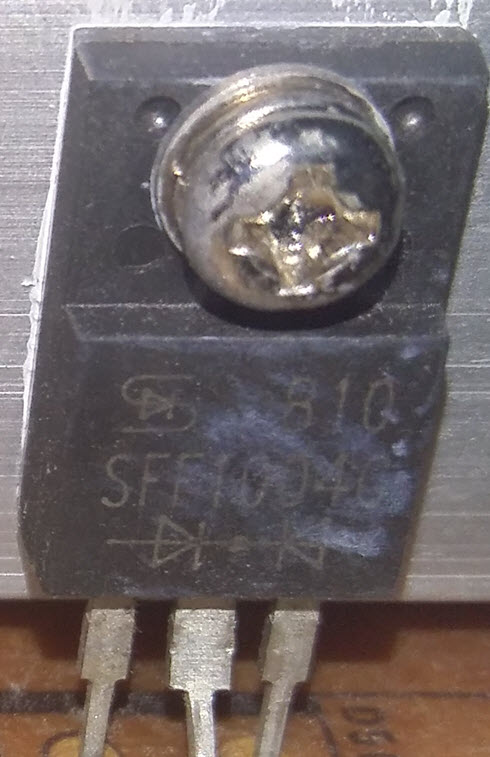

SFF1004G Isolated Glass Passivated Super Fast Rectifiers

- High efficiency, low VF.
- High current capavility
- High reliability
- High surge current capability
- Low power loss.
- UL Recognized File # E-326243
- Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21 definition

Mechanical Data

  • Case: ITO-220A
  • Molding compound, UL flammability classification rating 94V-0
  • Base P/N with suffix "G" on packing code - (green compound) halogen-free
  • Base P/N with prefix "H" on packing code - AEC-Q101 qualified
  • Terminal: Matte tin plated leads, solderable per JESD22-B102 Meet JESD 201 class 1A whisker test, with prefix "H" on packing code meet JESD 201 class 2 whisker test
  • Polarity: As marked
  • Mounting torque: 5 in-lbs maximum
  • Weight: 1.7 g (approximately)

Datasheet
