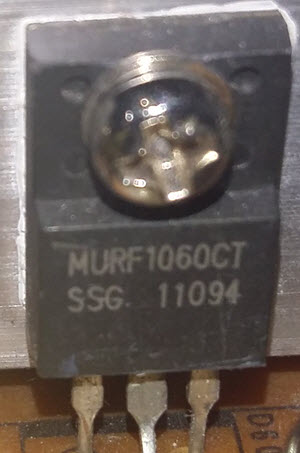

MURF1060CT SSG 11094 GLASS PASSIVATED SUPER FAST RECTIFIER

MURF1060CT SSG 11094 GLASS PASSIVATED SUPER FAST RECTIFIER

Reverse Voltage - 200 to 600 V
Forward Current - 10 A

FEATURES



  • Plastic package has Underwriters Laboratory Flammability Classification 94V-0
  • Fast switching for high efficiency
  • Low forward voltage drop
  • Single rectifier construction
  • High surge capability
  • For use in low voltage ,high frequency inverters,
  • free wheeling ,and polarity protection applications
  • High temperature soldering guaranteed:260 C/10 seconds,
  • 0.25"(6.35mm)from case
  • Component in accordance to RoHS 2002/95/EC and
  • WEEE 2002/96/EC


MECHANICAL DATA


  • Case:JEDEC ITO-220AB molded plastic body
  • Terminals:Lead solderable per MIL-STD-750,method 2026
  • Polarity: As marked.
  • Mounting Position:Any
  • Weight:0.08ounce, 2.24 gram
