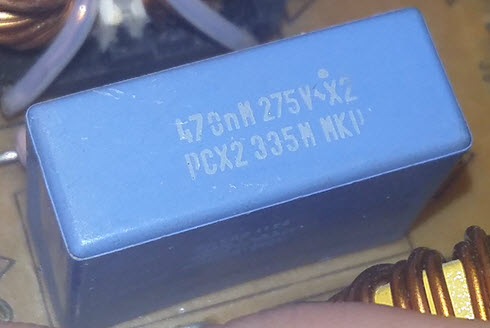

Interference Suppression film capacitors 470 nM 275V~X2 PCX2 335M MKP

Quick Reference
  • Capacitance range (E6 series) * 0.01㎌ to 3.3㎌
  • Capacitance tolerance ±10 %, ±20 %
  • Rated (AC) voltage 50 to 60 Hz 275 V~
  • Climatic category 40/100/21
  • Temperature range -40℃ ~ +100℃
  • Reference IEC specification IEC 60384-14(2nd edition) and EN 132400
  • Safety approvals UL1414 & CSA-C22.2 No 1, ENEC, EK, CQC
  • UL1283 & CSA-C22.2 No 8
  • Potting & Encapsulation material Qualified in accordance with UL 94V-0
  • Safety class X2
FEATURES

. 10 to 27.5 mm lead pitch
. Supplied loose in box and taped on reel
. Consist of a low-inductive wound cell of Metallized (PP) film
. potted in a flame retardant case

APPLICATIONS

. For X2-electromagnetic interference suppression
. Specially designed to meet the NEW

REQUIREMENTS of new IEC 60384-14
Specification(2nd edition)/EN 132400 requiring a 2.5kV peak pulse voltage test and the UL1414 and CSA-C22.2 No 1 specification

Datasheet






PCX2 335M Datasheet| PCX2 335M Capacitor
