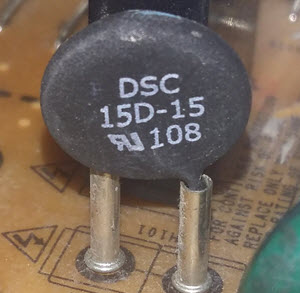

DSC 15D - 15 Negative Temperature Coefficient (NTC) Thermistor

LG LCD TV Power Supply

Specification

  • Part No = 15D - 15
  • Resistance at 25℃ (Ω) = 15.0
  • Max Steady State Current (A) = 4.0
  • Thermal Dissipation Constant (㎽/℃) = 17
  • Thermal Time Constant (Sec.) = 86
  • Beta Constant (K,25/85℃, ±10%) = 3180
  • Max. Capacitance (㎌) 120 Vac. = 2450 | 240 Vac. = 610

Datasheet








DSC 15D - 15 Thermistor Datasheet | DSC 15D - 15 Thermistor Schematic Diagram
