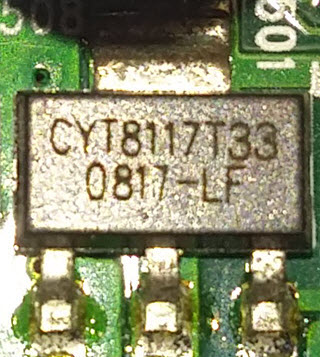

CYT8117T33 Positive Voltage Regulator

Description

The CYT8117 series of high performance low dropout voltage regulators are designed for applications that require efficient conversion and fast transient response.

Features


  • Low Dropout Performance.
  • Guaranteed 1A Output Current.
  • Wide Input Supply Voltage Range.
  • Over-temperature and Over-current Protection.
  • Fixed or Adjustable Output Voltage.
  • Rugged 3KV ESD withstand capability.
  • Available in SOT-223 Packages.


Application


  • Active SCSI Terminators.
  • High Efficiency Linear Regulators.
  • 5V to 3.3V Linear Regulators
  • Motherboard Clock Supplies.

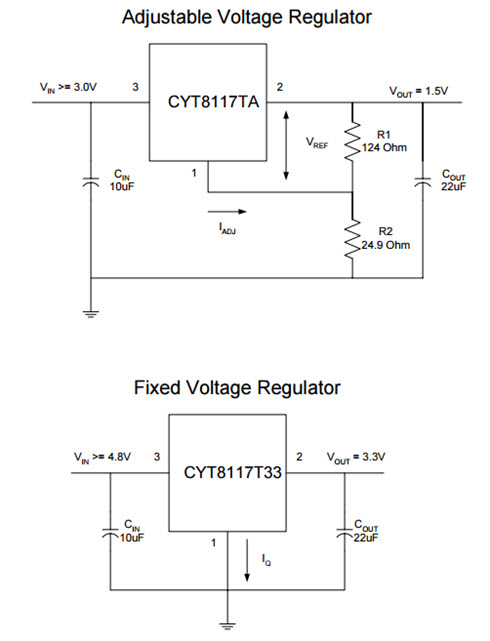

CYT8117T33 pinout (configuration)
Datasheet
