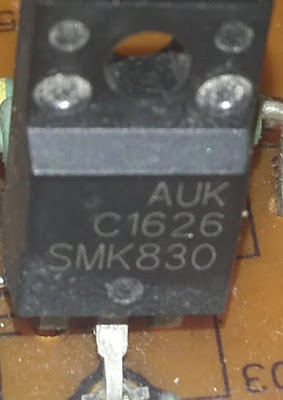

AUK C1626 SMK830 Advanced N-Channel Mosfet (Kondenshi AUK)

AUK C1626 SMK830 NPN Power Transistor SWITCHING REGULATOR APPLICATIONS

Features
• High Voltage : BVDSS=500V(Min.)
• Low Crss : Crss=33pF(Typ.)
• Low gate charge : Qg=16nC(Typ.)
• Low RDS(on) : RDS(on)=1.5Ω(Max.)

Datasheet





Fig. 14 Peak Diode Recovery dv/dt Test Circuit & Waveform



Fig. 13 EAS Test Circuit & Waveform



Fig. 12 Switching Time Test Circuit & Waveform

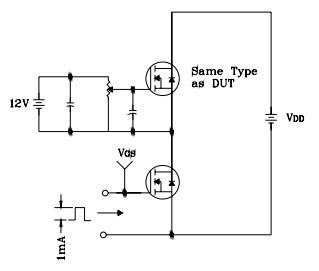

Fig. 11 Gate Charge Test Circuit & Waveform



SMK830 Pinout
